ERP architecture is the foundational technical framework that governs how data flows, how securely it is stored, and how a system scales. More than just a technical requirement, it is a strategic priority for business leaders; the chosen architecture—whether on-premise or cloud-native—directly impacts system performance, maintenance costs, and overall agility.
As companies undergo digital transformation, understanding these structural layouts becomes essential. A well-chosen model ensures that technology investments support long-term operational excellence, allowing the business to remain adaptable in a competitive landscape.
Key Takeaways
|
Understanding the Fundamentals of ERP Architecture
ERP architecture is the foundational blueprint that ensures a system can handle high transaction volumes while maintaining data integrity. Logical architecture governs software and rules while physical architecture manages hardware and network infrastructure.
A well-designed architecture relies on the separation of concerns, isolating different tasks to prevent system bottlenecks. Independent scaling and updates allow the system to grow seamlessly without disrupting daily operations.
Separation of concerns keeps system tasks independent, ensuring the user interface isn’t slowed down by heavy database queries. This modularity allows IT teams to update, secure, or scale specific components without disrupting the entire operation as the business grows
The Evolution of ERP Architectures
The landscape of enterprise software has undergone dramatic transformations over the past few decades. The architectural models of ERP systems have mirrored the broader evolution of computing technology, shifting from rigid, centralized processing to highly distributed, flexible networks.
The Mainframe Era (1970s – 1980s)
In the early days of enterprise computing, systems like Material Requirements Planning (MRP) operated on massive mainframe computers. The architecture was highly centralized. Users interacted with the system via “dumb terminals”—monitors and keyboards that had no processing power of their own. All the computational heavy lifting, data storage, and logic execution occurred on the central mainframe. While this ensured a single source of truth, these systems were incredibly expensive, difficult to maintain, and completely lacked user-friendly interfaces.
Client-Server Architecture (1990s)
The proliferation of personal computers (PCs) and Local Area Networks (LANs) birthed the client-server architecture. This model distributed the processing load between the server (which housed the database and core logic) and the client (the user’s PC, which handled the user interface and some basic logic). This era saw the rise of two-tier and eventually three-tier architectures, which dramatically improved system performance and user experience by utilizing the processing power of desktop computers.
Service-Oriented Architecture (SOA) and the Web Era (2000s)
As the internet became a standard business tool, ERP architectures adapted to web-based models. SOA replaces monolithic code with discrete, networked services that communicate to perform specific business functions. Standardized protocols allow applications to communicate, simplifying integrations and the transition to cloud computing.
Cloud-Native and Microservices (2010s – Present)
Today, the gold standard for enterprise software is cloud-native architecture powered by microservices. In a microservices architecture, the ERP is not a single application but a collection of loosely coupled, independently deployable services.Independent inventory and payroll services communicate seamlessly through APIs to ensure consistent, real-time data flow. This allows for unprecedented scalability, rapid updates, and the ability to leverage massive cloud computing resources on demand.
The Core Tiers of Traditional ERP Architecture
Despite the rise of microservices, the vast majority of enterprise systems still conceptually rely on the foundational three-tier architecture. This model logically separates the system into three distinct layers, ensuring that modifications in one tier do not necessitate a complete overhaul of the others. Understanding these tiers is crucial for diagnosing system performance issues and planning infrastructure upgrades.
1. The Presentation Tier (User Interface)
The presentation tier is the user interface where employees interact with the ERP via web browsers or mobile apps. Its primary job is to capture inputs, such as new sales orders, and display outputs, like real-time data dashboards.
Modern architectures use frameworks like React or Angular to create fast, responsive, and intuitive experiences. These “single-page applications” allow users to navigate smoothly without constant page reloads, significantly improving overall productivity and the user experience.
2. The Application Tier (Business Logic)
The application tier is the system’s “brain,” sitting between the user interface and the database. It processes all logic and calculations, such as verifying inventory, checking credit limits, and applying taxes whenever a user submits an order. By keeping this logic separate, organizations can update specific business rules or workflows—like changing a tax formula—without needing to redesign the database or the user interface
3. The Data Tier (Database Management)
The data tier is the system’s storage foundation, managing databases, data warehouses, and secure backups. It is responsible for maintaining data integrity and handling simultaneous access for thousands of users.
While traditional systems rely on structured relational databases (like SQL), modern architectures often include NoSQL databases. This allows the ERP to process unstructured data, such as IoT sensor readings from factory equipment or social media sentiment logs.
Monolithic vs. Postmodern ERP Architecture
Deployment Models and Their Architectural Impact
The physical location and hosting strategy of the software—known as the deployment model—has a profound impact on the underlying architecture. Organizations typically choose between on-premise, cloud, or hybrid models, each carrying distinct architectural requirements.
On-Premise Architecture
In an on-premise deployment, a company hosts its ERP software on its own physical servers and data centers. This requires the internal IT department to manage all hardware, security, and maintenance. It also involves high upfront costs (CAPEX) for infrastructure like server clusters, cooling systems, and power redundancies.
While this model offers maximum control for highly regulated industries, it severely limits scalability. Expanding capacity requires purchasing and installing new physical hardware—a process that can take months—making it far less flexible than cloud-based alternatives.
Cloud Architecture (SaaS, PaaS, IaaS)
ERP architecture shifts the burden of infrastructure management to a third-party vendor (like Amazon Web Services, Microsoft Azure, or Google Cloud). Cloud deployments offer rapid scalability, shifting costs from CAPEX to operational expenditure (OPEX).
Within cloud architectures, there is a critical distinction between single-tenant and multi-tenant environments:
- Single-Tenant Cloud: The organization has a dedicated instance of the software and a dedicated database hosted in the cloud. It offers high customization and data isolation but is generally more expensive to maintain and upgrade.
- Multi-Tenant Cloud (True SaaS): Multiple organizations share one software instance and database, keeping their data private and secure. This architecture allows the vendor to push updates to all customers simultaneously, ensuring everyone is always on the latest version. It is highly efficient and cost-effective.
Hybrid Architecture
A hybrid architecture blends on-premise and cloud deployments. An organization might keep its highly sensitive core financial data and legacy manufacturing execution systems (MES) on-premise, while
utilizing cloud-based modules for CRM, HR, and e-commerce. This architecture requires sophisticated edge computing capabilities and robust integration middleware to ensure secure, real-time data synchronization between the local servers and the cloud environments.

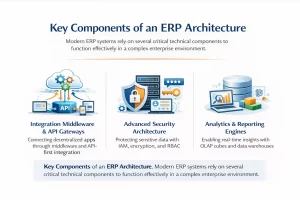

Key Components of an ERP Architecture
Beyond the basic tiers and deployment models, modern ERP architectures rely on several critical technical components to function effectively in a complex enterprise environment.
Integration Middleware and API Gateways
As systems become more decentralized, the ability to connect disparate software applications is vital. Middleware acts as the translation layer between different systems that do not naturally speak the same language. API Gateways manage the traffic of data requests, ensuring that when the e-commerce website requests inventory levels from the ERP, the request is routed correctly, authenticated, and returned rapidly. A strong API-first architecture is essential for businesses looking to connect IoT devices, mobile apps, and partner portals to their core system.
Advanced Security Architecture
ERP systems house a company’s most sensitive data, from financial records to employee social security numbers. Therefore, security cannot be an afterthought; it must be baked into the architecture. This includes:
- Identity and Access Management (IAM): Ensuring only authorized users can access specific modules through Single Sign-On (SSO) and Multi-Factor Authentication (MFA).
- Data Encryption: Architectures must support encryption both at rest (when stored in the database) and in transit (when moving between the server and the user’s browser).
- Role-Based Access Control (RBAC): Structuring the application logic so that users only see the data and functions necessary for their specific job role
Analytics and Reporting Engines
Traditional architectures often struggled with reporting because running heavy analytical queries on the same database used for daily transactions would slow the system down. Modern architectures solve this by utilizing Online Analytical Processing (OLAP) cubes, data warehouses, or data lakes. Automatic data replication enables heavy reporting on separate databases without slowing down daily user operations.
How Architecture Influences ERP Data Management
Modern ERP architectures rely on middleware to connect different software applications easily. These gateways act as a vital translation layer for your core system. A strong setup focuses on structuring and managing data effectively. This ensures every department works with real-time information without communication bottlenecks.
ERP systems house highly sensitive information and financial records daily. Advanced security measures must be baked into the core foundation. This approach involves strict access controls and robust data encryption. These active layers protect company records continuously from outside threats.
Traditional architectures often struggled with running heavy analytical queries. Modern setups solve this by separating daily operational databases. Complex analytics move into dedicated data warehouses or data lakes. Executives can run resource-heavy reports without disrupting everyday system users.
Evaluating Architecture During Software Selection
When business leaders set out to procure new enterprise software, they often focus heavily on the feature list: Does it have automated invoicing? Can it handle multi-currency transactions? While features are undeniably important, ignoring the underlying architecture during the selection process is a critical mistake that can lead to immense technical debt.
During the evaluation phase, IT leaders must interrogate the vendor’s architectural choices. Is the software a true multi-tenant cloud application, or is it a legacy on-premise system that has simply been hosted on a cloud server (a practice known as “cloud-washing”)? Does the system offer open, RESTful APIs for easy integration, or does it rely on proprietary, closed-loop connectors that will lock the business into the vendor’s ecosystem?
Understanding the system’s scalability limits, disaster recovery architecture, and update frequency is paramount. Incorporating a rigorous technical evaluation into your comprehensive ERP selection criteria is non-negotiable for organizations aiming to secure a platform that will support their growth for the next decade, rather than becoming a bottleneck within a few years.
The Role of Architecture in the ERP Life Cycle
The architectural foundation of an enterprise system dictates the trajectory of its entire lifespan. From the moment a company decides to implement a new system until the day that system is eventually retired, the architecture impacts every phase of the journey.
Implementation and Customization
During the initial rollout, a monolithic, tightly coupled architecture often requires extensive, time-consuming coding to customize the system to the business’s needs. Conversely, modern composable architectures allow implementation teams to use low-code/no-code tools to visually map workflows and integrate modules faster, significantly reducing the time-to-value.
Maintenance and Upgrades
The most painful aspect of legacy architectures is the upgrade process. Because the code, logic, and database are deeply intertwined, applying a software patch can inadvertently break custom modifications. This often results in “version lock,” where companies refuse to upgrade for years out of fear of system failure. Cloud-native, microservices architectures eliminate this by decoupling components. Vendors can update a single microservice in the background without any downtime or disruption to the client’s custom configurations.
Ultimately, the system’s structural design heavily influences all phases of the ERP life cycle. Systems built on modern, agile architectures enjoy longer lifespans, lower total cost of ownership (TCO), and easier eventual migrations when the technology landscape inevitably shifts again.
Future Trends in ERP Architecture
As technology continues to advance at breakneck speed, ERP architectures are evolving to incorporate emerging paradigms that promise even greater efficiency and intelligence.
Artificial Intelligence and Machine Learning Integration
AI is no longer just a buzzword; it is becoming a core component of enterprise software. However, running complex machine learning algorithms requires massive computational power and access to vast datasets. Future architectures are being designed with AI at the core, utilizing specialized data pipelines that feed real-time transactional data into AI models for predictive analytics, predicting demand, and automated anomaly detection, all without slowing down the core ERP functions.
Edge Computing
Particularly relevant for the manufacturing, logistics, and retail sectors, edge computing pushes data processing away from the central cloud server and closer to the source of data generation (the “edge”). In an edge-enabled ERP architecture, a smart sensor on a factory floor can process its own data locally to detect a machine failure and instantly trigger a maintenance request, only sending the summarized data back to the central ERP. This drastically reduces latency and bandwidth usage.
Headless ERP
Borrowing a concept from the e-commerce world, “headless” architecture completely decouples the presentation tier (the front-end UI) from the application and data tiers (the back-end). This allows organizations to build entirely custom,
Strategic Steps for Implementing a New ERP Architecture
Transitioning from a legacy system to a modern ERP architecture is one of the most complex IT initiatives an organization can undertake. It requires meticulous planning, cross-departmental collaboration, and a phased approach to mitigate operational risks. A successful architectural implementation generally follows a rigorous, multi-stage roadmap.
Phase 1: Architectural Assessment & Blueprinting
Before selecting a vendor, organizations must audit their IT landscape to map data flows and identify which legacy systems to retire. Architects then create a blueprint defining the deployment model (cloud/hybrid), security frameworks, and necessary middleware. This clear logical foundation prevents scope creep later in the project.
Phase 2: Data Migration & Tier Structuring
The data tier’s integrity is critical, requiring Extract, Transform, and Load (ETL) processes to cleanse and map legacy data to the new schema. This phase also involves configuring redundancy and failover clusters to ensure the database remains resilient against hardware failures.
Phase 3: Integration & Middleware Deployment
Modern ERPs use centralized middleware (like an API Gateway or iPaaS) instead of fragile point-to-point connections to communicate with external platforms like CRM or banking portals. This allows IT teams to monitor data exchanges and update connections without disrupting the core architecture.
Phase 4: Stress Testing & Phased Rollout
Before going live, the system undergoes rigorous load testing to ensure it scales under heavy use and penetration testing to find security gaps. To minimize risk, companies often use a phased rollout—deploying modules like Finance first—rather than a “Big Bang” launch.
Common Architectural Pitfalls to Avoid
Even with substantial budgets and skilled IT teams, ERP implementations can fail if fundamental architectural flaws are introduced during the design or deployment phases. Recognizing these pitfalls early is critical for long-term system health.
The Core Customization Trap
Modifying an ERP’s core source code to fit unique business processes creates massive technical debt and causes the system to break during vendor updates. Modern best practice is to keep the “core clean” and handle any customizations through external microservices or low-code extensions.
Ignoring Master Data Management (MDM)
Even the best architecture is useless if the data flowing through it is inaccurate. To prevent data silos and conflicting reports, you must establish strict data governance rules at the architectural level for how new records, like customer IDs or product SKUs, are created and validated.
Underestimating Integration Latency
Stitching together multiple cloud applications via APIs can lead to performance lags if not managed carefully. To maintain a smooth user experience, architects must design efficient data caching strategies and optimize API payloads to prevent network bottlenecks between different cloud environments.
Advanced Practices and Future Trends in ERP Architecture
The landscape of enterprise technology is shifting rapidly. To maintain a competitive edge, IT leaders are looking beyond traditional N-tier and cloud-hosted models, embracing advanced architectural paradigms that offer unprecedented agility and intelligence.
A beautifully designed N-tier architecture is useless if the data flowing through it is inaccurate. Failing to establish strict master data governance at the architectural level leads to data silos and conflicting reports. As demonstrated by recent research on digital enterprise architecture adoption within Malaysia’s FMCG sector, unifying fragmented, manual processes under a single digital blueprint is essential to eliminate these silos.
Composable ERP and MACH Architecture
The future of ERP is modular. Analysts are championing the concept of the Composable ERP, which moves away from rigid, all-in-one suites. Instead, businesses assemble a customized ERP ecosystem using Packaged Business Capabilities (PBCs)—independent software components that perform specific functions, like a standalone pricing engine or a dedicated tax calculation module. This trend aligns heavily with MACH architecture (Microservices-based, API-first, Cloud-native SaaS, and Headless). By adopting a MACH framework, enterprises can swap out individual components of their ERP architecture as business needs change, without executing a massive, system-wide upgrade.
Event-Driven Architecture (EDA)
Traditional ERP systems often rely on batch processing, where data is updated and synced at scheduled intervals (e.g., at the end of the business day). In contrast, Event-Driven Architecture (EDA) allows the system to react to state changes in real-time. A single purchase event instantly triggers inventory reservations, revenue recognition, and shipping labels across all integrated modules. EDA utilizes message brokers (like Apache Kafka) within the application tier to ensure these events are processed asynchronously and reliably, enabling hyper-responsive business operations.
AIOps and Intelligent Infrastructure
As ERP architectures become more distributed and complex, managing them manually becomes nearly impossible. Artificial Intelligence for IT Operations (AIOps) is being integrated directly into the architectural fabric. AIOps tools continuously monitor the health of the servers, databases, and APIs. Machine learning autonomously detects performance anomalies and provisions server resources or reroutes traffic before administrators even notice. This self-healing capability represents the pinnacle of modern, resilient ERP architecture.
Conclusion
Ultimately, selecting the right ERP architecture is no longer just a technical checkbox; it is a foundational business decision that dictates your organization’s long-term agility. As the enterprise landscape shifts from rigid, legacy systems toward flexible, API-driven ecosystems, businesses must prioritize infrastructure that supports rapid scaling and seamless integration.
Ignoring your industry’s specific architectural needs invites costly technical debt and severe vendor lock-in. Ultimately, your software’s underlying blueprint—whether edge-based for manufacturing, headless for retail, or composable for ultimate modularity—will either propel your business forward or become your biggest operational bottleneck.
To future-proof your business, you need an enterprise system built on a resilient, deeply integrated, and highly secure foundation. If you want to see what a modern, scalable digital infrastructure looks like in practice, you can request a free demo to explore exactly how a robust architecture connects your expanding operations from end to end.
Frequently Asked Questions on ERP Architecture
-
How does modern ERP architecture integrate with third-party applications?
Modern architectures no longer rely on rigid, point-to-point manual integrations. Current systems utilize an API-first approach and middleware (such as iPaaS) to seamlessly connect the core ERP with specialized best-of-breed applications. This ensures real-time data synchronization without compromising the stability of the main system.
-
How does ERP architecture impact long-term IT costs?
Your architectural choice directly dictates the Total Cost of Ownership (TCO). Traditional monolithic structures often trap businesses in expensive upgrade cycles and severe vendor lock-in. Conversely, cloud-native microservices or composable ERPs are highly cost-efficient, allowing you to update and scale only the specific modules you actually need.
-
Why is N-Tier structural separation crucial for enterprise data security?
Separating the user interface (presentation tier) from the backend database (data tier) creates a robust, multi-layered defense system. If a cyberattack targets the web frontend, hackers cannot easily bypass to the core financial data, as each architectural layer enforces its own strict authentication and encryption protocols.
-
Which ERP architecture is best for rapidly scaling businesses?
For companies experiencing rapid growth or seasonal demand spikes, a cloud-native architecture powered by microservices is the ultimate solution. This infrastructure allows for independent, on-demand scaling—meaning IT teams can boost server capacity for specific functions in minutes with absolutely zero system downtime.
